COMPLETE REAR TRIANGULATED 4 LINK SUSPENSION
INCLUDES:
REAR 4 LINK SUSPENSION
QTY. 2 ZINC PLATED DOUBLE ADJUSTABLE LONG BARS, SEE PICTURE FOR LENGTH, 1.25" DIAMETER TUBING, 0.25" WALL THICKNESS
QTY. 2 ZINC PLATED DOUBLE ADJUSTABLE SHORT BARS, SEE PICTURE FOR LENGTH, 1.25" DIAMETER TUBING, 0.25" WALL THICKNESS
QTY. 4 3/4"-16 FORGED STEEL RIGHT HAND THREADED ROD ENDS WITH BUSHINGS AND SLEEVES
QTY. 4 3/4"-16 FORGED STEEL LEFT HAND THREADED ROD ENDS WITH BUSHINGS AND SLEEVES
QTY. 2 SILVER FINISH WELD ON REAR AXLE BRACKETS FOR 3" DIAMETER AXLE HOUSING
QTY. 2 SILVER FINISH WELD ON FRAME BRACKETS
QTY. 2 SILVER FINISH WELD ON INNER FRAME BRACKETS
QTY. 4 SILVER FINISH WELD ON UPPER AXLE MOUNTING TABS
QTY. 8 5/8" BOLTS WITH NYLOCK NUTS
ALSO INCLUDED:
WELD ON REAR UPPER AND LOWER AIR BAG MOUNTING BRACKETS
INCLUDES:
QTY. 2 REAR UPPER FRAME MOUNTS
QTY. 2 REAR LOWER AXLE MOUNTS
BRACKETS MEASURE 10" WIDE, 7" DEEP, 3" TALL
FITMENT 2.75" TO 3.25" DIAMETER AXLE ON LOWER MOUNT

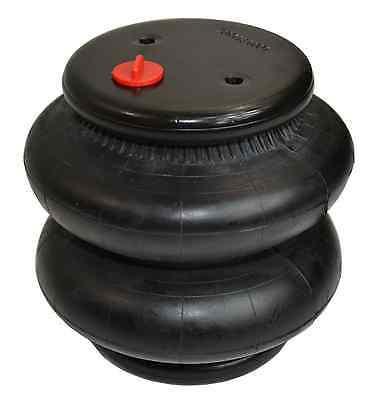

2500 AIR BAG SUSPENSION MOUNT KIT NEW
KIT INCLUDES:
QTY. 2 2500 1/2" PORT AIR BAGS WITH MOUNTING HARDWARE
AIR BAG SPECS: 2500LB EACH, 1/2" SINGLE PORT NTP, 7" DIAMETER, COLLAPSED 3", EXTENDED 9.5", 500 PSI BURST PRESSURE
